Nylon 66

Brief Overview

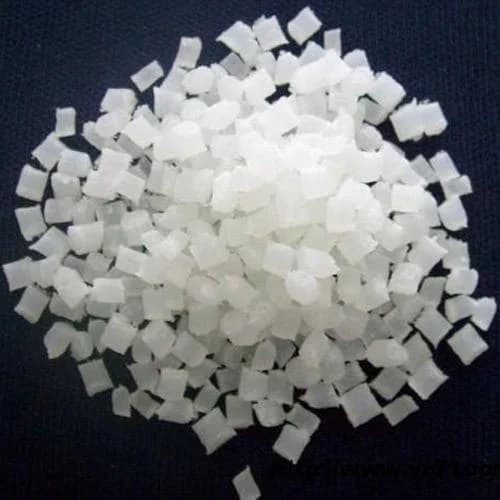

Nylon 66 is a synthetic polymer made from the combination of two monomers, adipic acid and hexamethylenediamine. The polymer has a repeating unit of (NH-(CH2)6-NH-CO-(CH2)4-CO-), which gives Nylon 66 its unique properties of high strength, durability, and thermal stability. It is used in a wide range of applications, such as automotive parts, electrical and electronic components, textiles, and industrial products, due to its ability to withstand heat, chemicals, and abrasion. Nylon 66 is a versatile material that can be processed into different forms, including fibers, films, and molded parts, making it suitable for a variety of applications.
Manufacturing Process
Polymerization: The first step is the polymerization of the two monomers, adipic acid and hexamethylenediamine. The monomers are heated to around 280-300°C in the presence of a catalyst to form Nylon 66 polymer.

Filtration: The Nylon 66 polymer is then filtered to remove any impurities that may have formed during the polymerization process.

Extrusion: The filtered Nylon 66 polymer is then melted and extruded through a spinneret to form long fibers. The spinneret has small holes through which the polymer is forced to form the fibers.

Drawing: The extruded fibers are then stretched or "drawn" to align the polymer chains and increase their strength and durability.

Heat Setting: The drawn fibers are then heat set, or annealed, by heating them to around 200°C for a period of time. This process helps to stabilize the fibers and prevent them from shrinking or stretching.

Cutting and Spinning: The heat-set fibers are then cut into shorter lengths and spun into yarns. These yarns can be further processed into a variety of different products, such as textiles, carpets, and industrial fibers.
